Natural Wonders Waterfall (Back Port 18″)

NATURAL WONDERS® WATERFALL
18" Back Port

CMP Part Number	Full Description
25577-175-000	18" Waterfall with 1" Lip; Back Port; Clear
25577-170-000	18" Waterfall with 1" Lip; Back Port; White
25577-179-000	18" Waterfall with 1" Lip; Back Port; Tan
25577-171-000	18" Waterfall with 1" Lip; Back Port; Gray
25577-185-600	18" Waterfall with 6" Lip; Back Port; Clear
25577-180-000	18" Waterfall with 6" Lip; Back Port; White
25577-189-000	18" Waterfall with 6" Lip; Back Port; Tan
25577-181-000	18" Waterfall with 6" Lip; Back Port; Gray
25577-185-900	18" Waterfall with 9" Lip; Back Port; Clear
25577-180-900	18" Waterfall with 9" Lip; Back Port; White
25577-189-900	18" Waterfall with 9" Lip; Back Port; Tan
25577-181-900	18" Waterfall with 9" Lip; Back Port; Gray
25577-185-120	18" Waterfall with 12" Lip; Back Port; Clear
25577-180-120	18" Waterfall with 12" Lip; Back Port; White
25577-189-120	18" Waterfall with 12" Lip; Back Port; Tan
25577-181-120	18" Waterfall with 12" Lip; Back Port; Gray

WATERFALL PERFORMANCE
RESULTS AT 40IN HEIGHT	18″

WATERFALL	GPM ( +/-1 )	18 GPM
WATERFALL	PROJECTION	12″

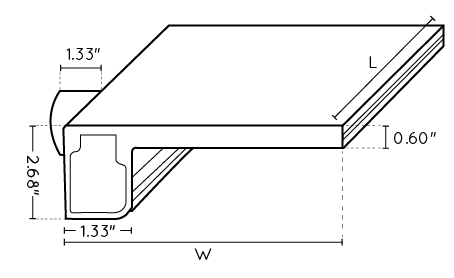

WATERFALL DIMENSIONS

All “L” dimensions are +/- 0.33”

RECOMMENDED PIPE CONFIGURATION

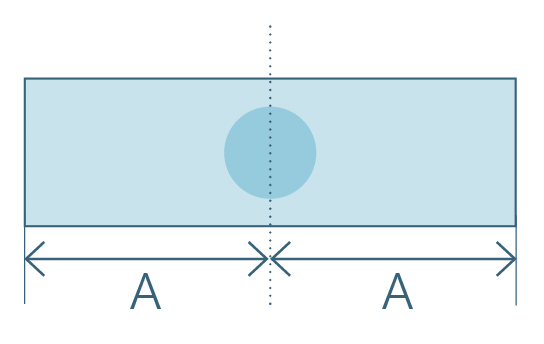

INLET SPACING GUIDE

18″ falls a = 9-9/32″
