Electrical
Transformer Connection
Run the supplied 2-conductor electric cord through the conduit outlet of the wall to the location of the 12VAC pool/spa transformer.

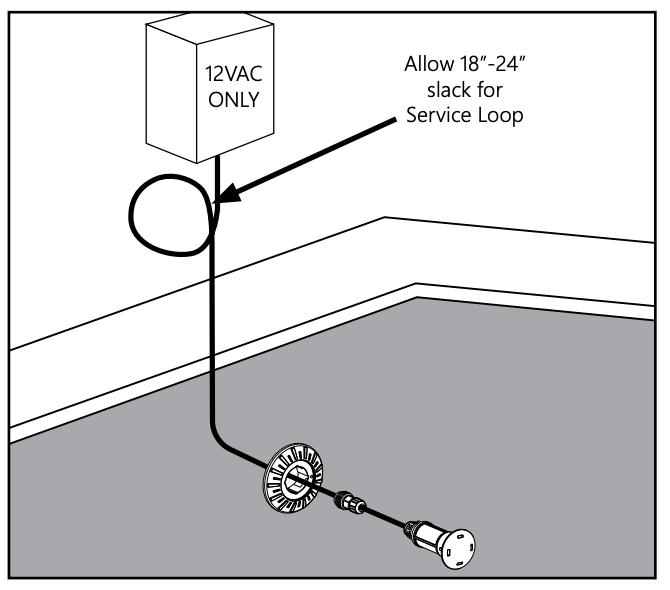

Allow 18″-24″ extra slack in the cord on the 12VAC pool transformer end for future service of the LED light.
Cut off excess cord as needed.

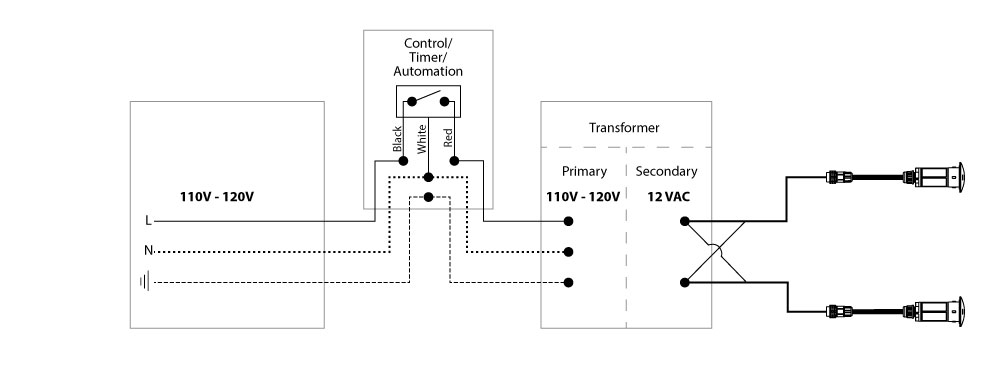

Wiring Connection to Transformer
A Red wire is used with the Brilliant Wonders Controller.
If another timer or switch is installed, there may not be a red wire.
If this is the case, follow this wiring structure:
Black = Hot
White = Neutral
Green = Ground
