LED Strip Installation

Using Door Unlatching Tool

Insert door unlatching tool into the side holes of the cuttable doors with bent portion facing up.

Once fully inserted, pull tool to remove door.

Wire and terminal from LED strip will slide out with cuttable door.

Remove LED Strip terminal from the door.

Pull the power cable and LED strip through the front of the side conduit and glue adapter into the back.

Connect power cable connector terminal to connector terminal of LED strip.

Place both into the cuttable door as shown.

Push cuttable door into side conduit while pulling the electric cable from the back.

Glue door cover to cuttable door using PVC glue.

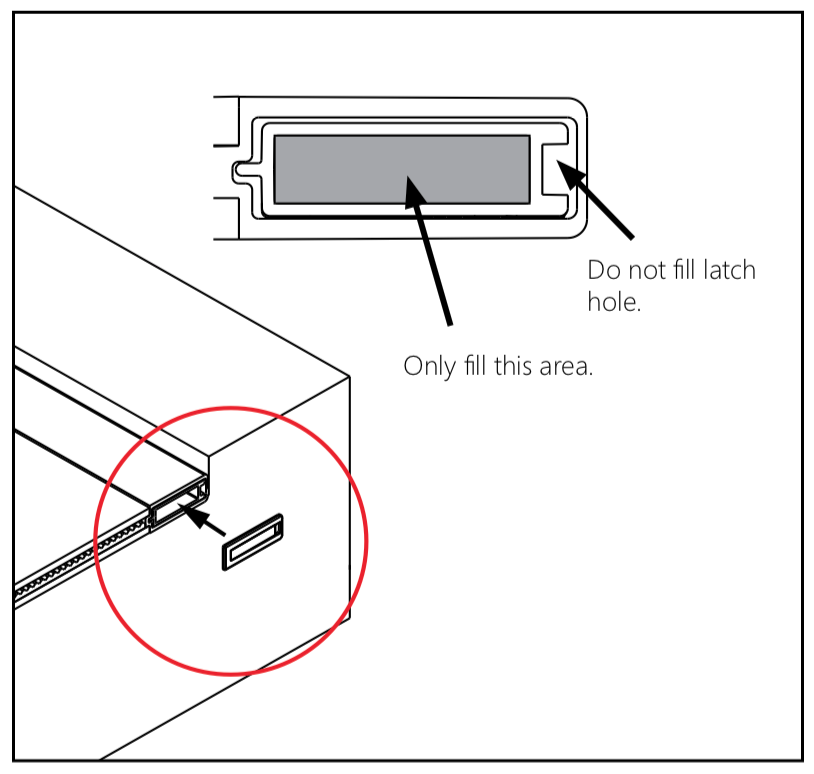

OPTIONAL: Opening of cuttable door can also be filled with grout, plaster, caulk, etc. to match pool wall.

Fill only opening of cuttable door, do not cover latch hole.
