Electrical & Control Installation

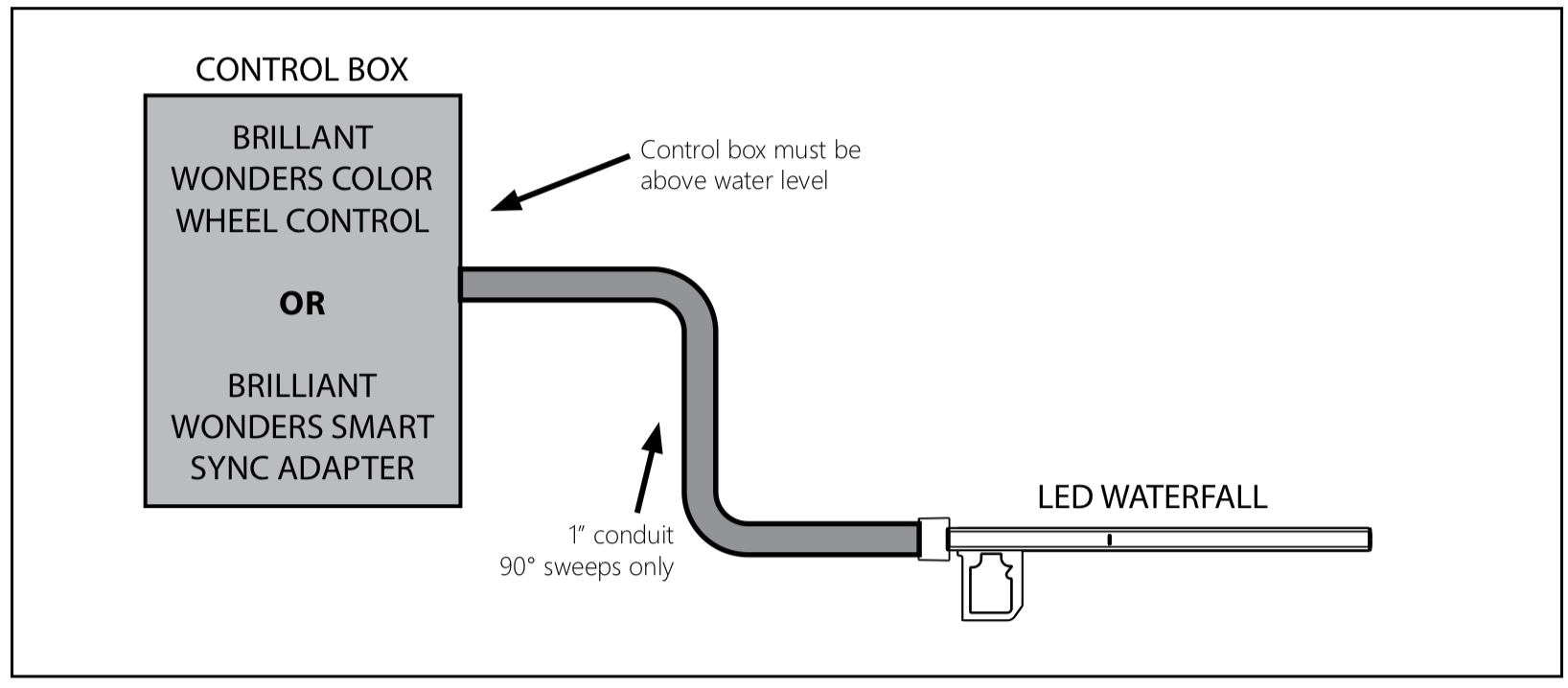

Conduit Installation
Install power cable through 1” conduit. Use only sweeps, no 90° elbows.
Control box must be above water level.
Connect cable to Brilliant Wonders Color Wheel Control or Brilliant Wonders Smart Sync Adapter.
Control Setup Options
There are two options for controlling the LED Waterfall. The Colorwheel Control is a complete stand-alone control system for the waterfall. The Smart Sync Adapter is used to control the LED Waterfall with most major pool automation systems. The Color Wheel Control and Smart Sync Adapter are incompatible and should not be used together.
Smart Sync Adapter
Brilliant Wonders Color Wheel Control
The Color Wheel control is a 12V DC system; Requires a 12V DC power supply (sold separately).
The remote control has 18 function buttons and 1 full-color touch circle.
The controller has 8 touch buttons.
Install in Enclosure
The enclosure or junction box must be installed per the National Electric Code (NEC) requirements as well as comply with any local codes and regulations. Min size of controller box must be 9″ x 2″ x 1.5″. The enclosure must be non-metallic (plastic) to ensure adequate RF signals are achieved.
All wire used from the controller box to LED Strip must be in conduit.
For product longevity, ensure proper ventilation where both the controller and power supply may be mounted inside the same enclosure in elevated outdoor temperatures.
DO NOT INSTALL ANY OTHER ITEM INSIDE CONTROLLER ENCLOSURE.

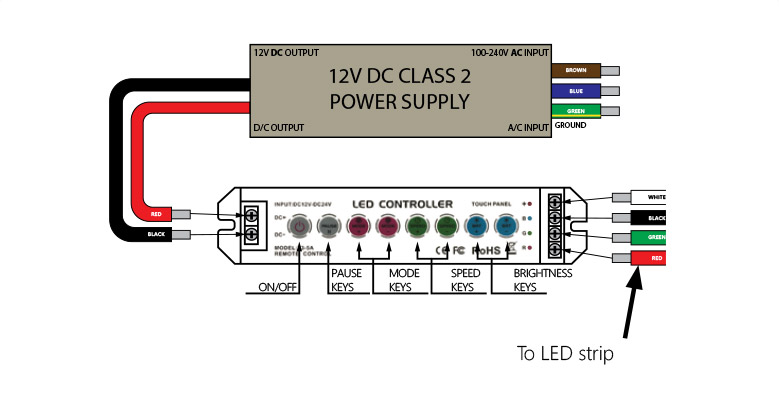

Colorwheel Control Wiring
Pair and Charge Remote
- Press the “ON/OFF” key on the controller until you hear the “BEEP” sound, then press the “1” key on the remote to activate the connection between the controller and remote control. Press the “2” key to cancel the connection.
- When charging, connect the USB cable to the mobile charger or a computer with USB interface. The remote control must be turned on to charge.
- The blue indicator light flickers while charging, and will turn green when fully charged
- No memory effect in the lithium battery of the remote control. Follow the standard charging procedure even for the first three charges. There is no need to overcharge.
- The red indicator light flickers when the battery is low and needs to be charged soon. Charging in low battery will affect battery life.
Color Control Operation
Install with 12V AC Transformer
Brilliant Wonders Smart Sync Adapter requires a 12V AC transformer (not included). Transformer should be installed between the power source and Smart Sync Adapter.

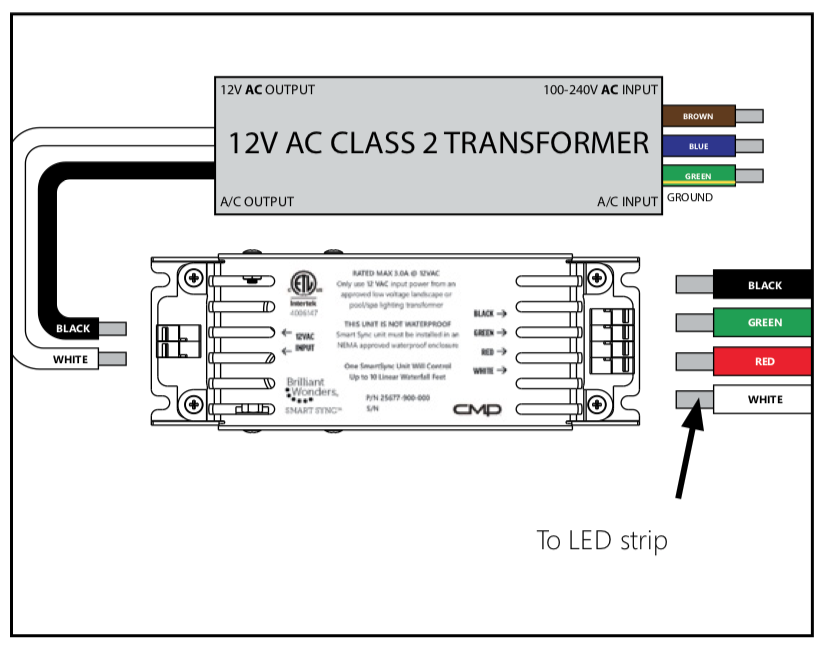

Smart Sync Adapter Wiring
Attach wires to control box by pressing button and inserting wires.
Select Smart Sync Mode
Using a flathead screwdriver, turn the dial until the desired program is selected.
J-Style = Dial Setting 1
H-Style = Dial Setting 2
P-Style = Dial Setting 3
Install in Outdoor Box
Mount Smart Sync control box in a NEMA approved weatherproof enclosure (mounting screws not included).
Recommend CMP Part #: 25650-100-210
Smart Sync System Wiring
Wiring of the system will vary depending on the total length of waterfalls installed as well as the total number of waterfalls installed. Select the option below that best matches your installation
Diagram for two waterfalls
Diagram for over 10ft of waterfalls
Diagram for waterfalls with other lighting products
Smart Sync Wiring with One Waterfall Under 10ft
Wiring Two or More LED Waterfalls

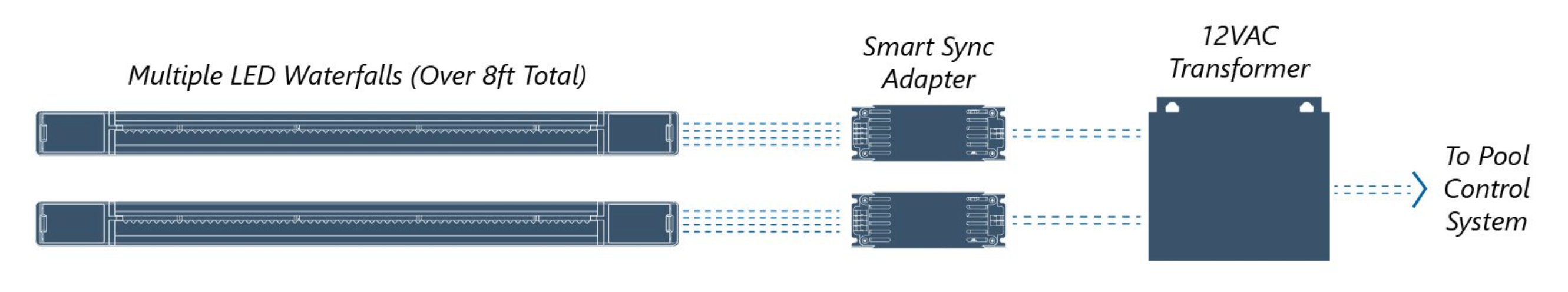

Wiring over 10ft of LED Waterfalls
Wiring LED Waterfalls with Other LED Products
